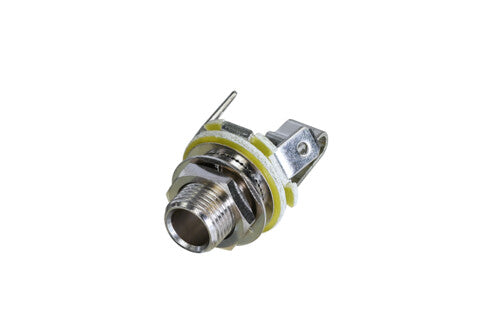

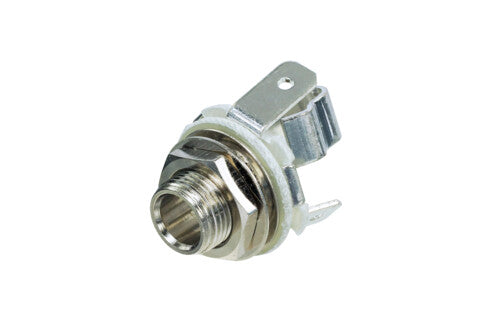

Neutrik TS Mono 1/4" Jack
Quality genuine Neutrik TS 1/4" Mono Jack.
Technical Information
| Product | |
| Title | NYS229 |
| Connection Type | Jack |
| Electrical | |
| Contact resistance | ≤10mΩ |
| Insulation resistance | ≥2000MΩ |
| Dielectric strength | 50Hz 500VAC |
| Mechanical | |
| Insertion and Withdrawal force | 4.5-40N |
| Lifetime | >5000 mating cycles |
| Material | |
| Contact | QSn6.5-0.1δ0.5 T |
| Contact | H62 δ0.5 Y2 |
| Base | Brass |
| Gasket | Steel |
| Nut | Brass |
| Contact | Tin and Ce |
| Contact | Tin and Ce |
